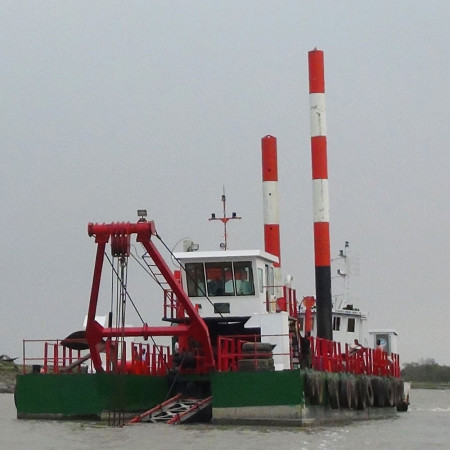

3000 Meters Discharge Distance River Dredger With Hydraulic Control And Electric System
Product Specifications
| Attribute | Value |
| Capacity | 6000-7000m³/h |
| Size | Varies Depending On The Model |
| Diesel Engine | Cummins, WEICAHI, Mitsubishi |
| Cutter Blade Quantity | 5-6 Pieces Crown Type |
| Spud Lifting System | Hydraulic Spud Lifting System |
| Dredge Depth | 18m |
| Moving Way | Hydraulic Winch And Spud Carriage |
| Optional Equipment | Spud Carriage, Anchor Boom, Etc. |
| Name | 26inch River dredger |
| Type | Cutter suction dredger |
JMD650 River Dredger Description
The River Dredger is a powerful and efficient solution for dredging operations in rivers, lakes, and other water bodies. This versatile river cutter suction dredger is equipped with advanced technology and robust components to ensure optimal performance in various dredging projects.
With optional equipment such as the Spud Carriage and Anchor Boom, the River Dredger offers enhanced capabilities and flexibility to tackle different types of dredging tasks. Whether you need to anchor the dredger securely in place or extend its reach for dredging operations, the optional equipment provides added functionality to meet your specific requirements.
Key Features
- Product Name: River Dredger
- Function: Shallow River Dredging
- Moving Way: Hydraulic Winch And Spud Carriage
- Dredge Depth: 18m
- Discharge Pipe Diameter: Up To 650 Mm
- Control System: Hydraulic Or Electric
Technical Parameters
| Dredging Pump | Dia. Discharge pipe: 650mm |
| Head | 65m |
| Max. Working capacity | 1100m³/h |
| Discharge distance | 4000m |
| Dredging depth | 18m |
| Diesel Engine | 1885KW | Mitsubishi |
| Hydraulic Auxiliary engine | 522KW | Cummins |
| Emergency Generator | 30KW | WEICHAI |
| Total power | 2437KW |
| Oil Consumption | 365L/H |
| Hull Dimension | LOA*W*D: 50m×8.8m×2.5m |
Design and Construction
The cutter suction river dredger design meets the requirements and regulations of CCS, BV and ABS, which are belonging to IACS. The technology refers to Holland IHC, and river dredger can be custom made according to customers' requirements.
Steel plates use marine-grade material meeting CCS requirements, with all plates undergoing sand blasting process. The hydraulic system features pipes made by pipe bending machine to decrease welding points for system stability, with acid picking and phosphating treatment for cleanliness.
Applications
The Jin Meng JMD650 river cutter suction dredger is designed for:
- Dredging rivers and sand
- Desilting operations
- Reclamation for channels and land
- Building roads
- Working in sea, port, lake, and river environments
- Handling various soil conditions including hard soil, sand, sludge, clay, and mud
Support and Overseas Services
Our comprehensive support includes:
- 2 qualified engineers for installation guidance and training
- Assistance with installation by 6-8 workers
- 10-15 day installation and test period
- Engineers arriving within 3 days of equipment delivery
- Complete performance testing after installation
Packing and Shipping
Our River Dredger is carefully packaged in sturdy cardboard boxes for safe transportation. We offer free shipping within the United States, with international shipping fees applicable.
Factory and Production
Weifang Jin Meng Dredger Factory
Dredger Under Production
Dredger In Stock
Dredger In Operation
Dredger Performing Work
Installation and Training
