6000m³ 26inch Heavy Type Diesel Engine Power Sand Suction Dredger With Cutter Head
Product Specifications
| Attribute | Value |
| Name | Heavy type diesel power sand suction dredger |
| Type | Sand suction dredger |
| Sand Pump | 530WN |
| PLC Brand | SIEMENS |
| Side Plate Thickness | 6-25mm |
| Spud Length | Up to 25m |
| Draft | 1.2m |
| Output Distance | 3000m |
| Sand Pump Brand | Shijiazhuang Industrial Factory |
| Equipment Weight | 290 tons |
Product Overview
Weifang Jin Meng Dredger Co., Ltd. is recognized for its strong technical expertise, high-quality heavy type diesel power sand suction dredgers, and excellent after-sales service. Our products serve domestic markets across multiple provinces and international markets including India, Iran, Oman, UAE, Argentina, Colombia, Saudi Arabia, and more.
Our company features a professional R&D department, CAD design center, quality control department, and after-sales service team. With over 500 employees, including senior engineers, designers, and quality control specialists, we maintain rigorous standards in dredger manufacturing.
Technical Specifications
| Model | JMD650 Heavy Type Diesel Power Sand Suction Dredger |
| Dredging Pump | 650mm discharge pipe diameter |
| Head | 65m |
| Max. Working Capacity | 1100m³/h |
| Discharge Distance | 4000m |
| Dredging Depth | 18m |
| Diesel Engine | 1885KW Mitsubishi |
| Hydraulic Auxiliary Engine | 522KW Cummins |
| Emergency Generator | 30KW WEICHAI |
| Total Power | 2437KW |
| Oil Consumption | 365L/H |
| Hull Dimensions (LOA×W×D) | 50m × 8.8m × 2.5m |
Features and Applications
This heavy type diesel power sand suction dredger is equipped with horizontal shifting devices, cutter ladder lifting systems, spud devices, and deck crane. It can be customized with anchoring poles and trolley systems for enhanced functionality.
Primary applications include river dredging, desilting, channel reclamation, and sand extraction in rivers, saltwater, or calm sea conditions.
Customization Options
- Anchor booms installation
- Spud carriage installation
- 5-anchor system for improved balance
- Hydraulic spud flat down system for safe transport
- Additional underwater dredging pump for increased depth (20-30m)
- Booster station for extended discharge distance
Road transportation by trucks

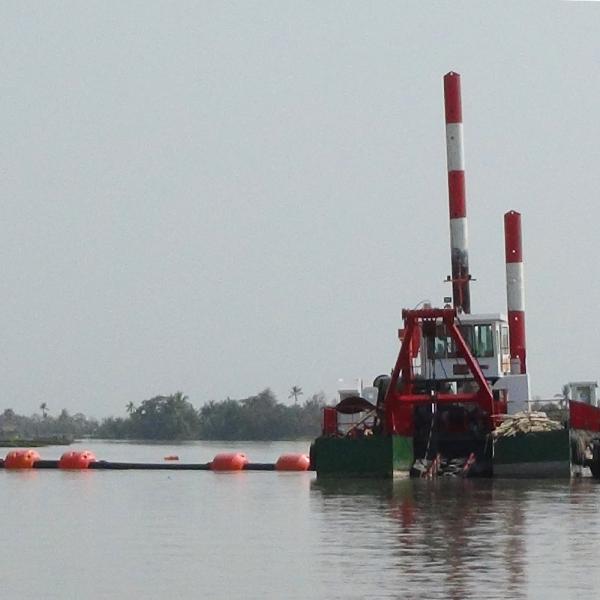

JMD650 Heavy type diesel power sand suction dredger working site
Heavy type diesel power sand suction dredger installation and training
Welcome to visit our factory for more details
Please feel free to contact
