2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas

  • 1
  • 2

Brand Name : JIN MENG

Model Number : JMD450

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : $500000-$800000

Payment Terms : T/T

Supply Ability : 10sets/year

Delivery Time : 30days

Packaging Details : Bulk

Name : Port river dredging cutter head suction dredge

Type : Cutter suction dredger

Spud Length : 20m

Application : River port dredging

Power Type : Diesel

Cutter Diameter : 1.3m

Total Installed Power : 762kW

Suction Pipe Diameter : 500mm

Cutter head Speed : 30rpm

Discharge Distance : 1200m

Contact Now

2500m³ Port River Sand Dredging Boat Cutter Head Dredge
Product Specifications
Attribute Value
Name Port river dredging cutter head suction dredge
Type Cutter suction dredger
Spud Length 20m
Application River port dredging
Power Type Diesel
Cutter Diameter 1.3m
Total Installed Power 762kW
Suction Pipe Diameter 500mm
Cutter Head Speed 30rpm
Discharge Distance 1200m
Company Overview

Weifang Jin Meng Dredger Company is a professional manufacturer specializing in port river dredging equipment with:

  • 500+ employees including 5 senior engineers
  • 16 specialized designers
  • 8 quality control engineers
  • 10 after-sales service engineers
  • Strategic cooperation with leading dredger design institutes
  • Domestic and international service offices
Product Description

Our port river dredging cutter head suction dredge is designed as a dismantle-type non-self-propelled vessel suitable for dredging operations in inland waters and coastal areas. Capable of handling soil types II-IV including:

  • Fine sand
  • Clay
  • Silt
  • Coarse sand

The modular hull design allows for easy transportation by road, rail, or container. Power systems can be customized as electric or diesel according to customer requirements.

Technical Specifications
Component Specification
Dredging Pump Discharge pipe: 450mm
Head 55m
Max. Working Capacity 400m³/h
Discharge Distance 1500m
Dredging Depth 12m
Diesel Engine 746KW Cummins
Emergency Generator 16KW WEICHAI
Total Power 762KW
Oil Consumption 115L/H
Hull Dimensions (LOA×W×D) 37m × 6.9m × 1.8m
Hydraulic System VICKERS America (Joint-venture)
Operating System SIEMENS PLC (Imported from Germany)
Cutter Head Φ1500mm crown-like, 100KW power
Features & Applications

Key equipment includes:

  • Traversing device
  • Cutter ladder lifting device
  • Spuds
  • Deck crane

Operation process: The cutter head cuts underwater material into slurry, which is pumped through pipelines to the discharge location.

Primary applications:

  • River dredging and desilting
  • Channel maintenance
  • Land reclamation
  • Sand dredging in rivers and coastal areas

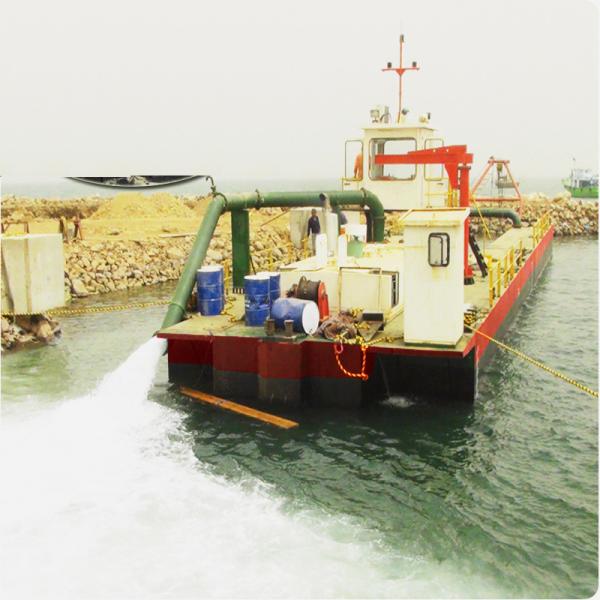

Factory & Product Images
2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas 2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas 2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas 2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas 2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas 2500m3 Port River Sand Dredging Boat Cutter Head Dredger For Coastal Areas
Contact Us

Welcome to visit our factory for more details about our portable port river dredging cutter head suction dredges.
