Portable Sand Suction Dredger Vessel For Marine Dredging / River Cleaning

  • 1
  • 2

Brand Name : JIN MENG

Model Number : JMD350

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : $100000-$300000

Payment Terms : T/T

Supply Ability : 20sets/year

Delivery Time : 30days

Packaging Details : Containers

Name : Portable Sand Suction Dredger Ship

Type : Sand cutter suction dredger

Purpose : Shallow water dredging

Draft : 0.8-1.5m

Discharge Pipe Diameter : 350mm

Application : Marine Dredging

Pump Type : Centrifugal

Spud Length : 14-20m

Contact Now

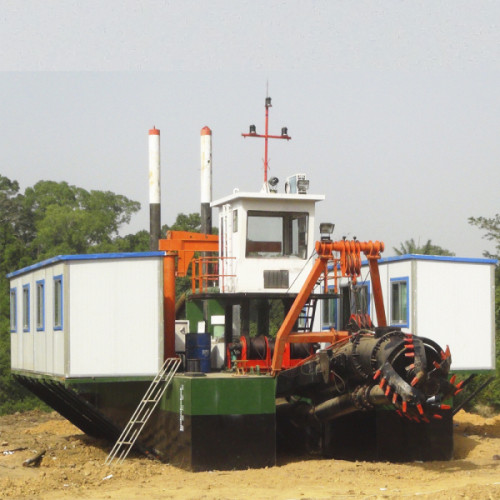

Portable Sand Suction Dredger Ship For Shallow River Cleaning
Attribute Value
Name Portable Sand Suction Dredger Ship
Type Sand cutter suction dredger
Purpose Shallow water dredging
Draft 0.8-1.5m
Discharge Pipe Diameter 350mm
Application Marine Dredging
Pump Type Centrifugal
Spud Length 14-20m
Company Introduction
Weifang Jin Meng Dredger Co.,Ltd., located in Qingzhou, Weifang City, Shandong Province, is a professional manufacturer of portable sand suction dredger ships since 2000. Our products offer competitive pricing and serve markets across Africa, the Middle East, Southeast Asia, South America, and North America.
Recognized for technical expertise, product quality, and excellent after-sales service, our dredgers are used domestically across China and internationally in countries including India, Iran, Oman, UAE, Argentina, Colombia, Saudi Arabia, Bangladesh, Egypt, Nigeria, Mongolia, and Russia.
Product Specifications
Our JMD350 Portable Sand Suction Dredger Ship meets CCS standards, featuring:
  • CCSB-grade steel plates
  • CCS-certified welding
  • Marine-grade anti-corrosion paint
  • Precision diesel engine installation (<0.05mm)
  • Cummins or Mitsubishi diesel engines
  • Kinda dredging pumps
  • Hangzhou Qianjin gearboxes
  • Rexroth hydraulic systems (Germany)
  • Siemens PLC control systems
  • NSK bearings (Japan)
  • Parker seals (USA)
Technical Specifications
Dredging Pump Shijiazhuang
Discharge Pipe Diameter 350mm
Head 55m
Max. Working Capacity 260m³/h
Discharge Distance 1500m
Dredging Depth 8m
Diesel Engine 522KW Cummins
Generator 12KW WEICHIA
Total Power 534KW
Oil Consumption 80L/H
Hull Dimensions (LOA×W×D) 23m×5.2m×1.5m
Features & Applications
Our portable dredger features modular design with detachable control/rest rooms for easy transport under low bridges. The three-pontoon structure (main + two side pontoons) connects with high-strength bolts for stability.
Applications: Sea, port, lake, and river environments
Soil Types: Hard soil, compacted sand, sludge, sea/river sand, clay, mud
Customization Options
  • Anchor boom installation
  • Spud carriage systems
  • 5-anchor positioning
  • Hydraulic spud lowering for bridge clearance
  • Additional underwater pumps (20-30m depth, >30% slurry concentration)
  • Booster stations for extended discharge distance
Transportation
JMD350 and smaller models ship via container; larger units transport as bulk cargo. Modular design allows road transport via truck after disassembly.
