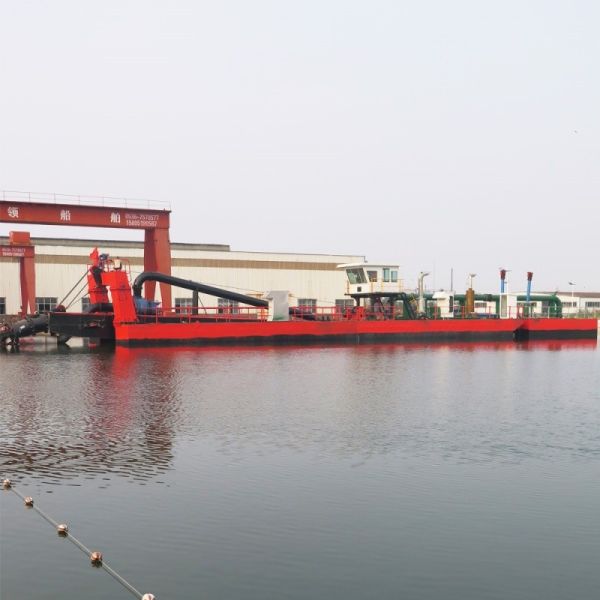

Depth 25m River Dredging Equipment Suction Dredger 22 inches with Submersible Pump
Product Specifications
| Attribute | Value |
| Name | Dredging machine cutter suction river dredger |
| Type | Cutter suction river dredger |
| Discharge Distance | 2000m |
| Suction Diameter | 600mm |
| Spud Diameter | 500mm |
| Warranty | 1 year |
| Color | Customized |
| Control System | Manual or remote control |
| Material | Marine steel |
| Discharge Diameter | 22 inches |
Product Overview
The Depth 25m River Dredging Equipment Suction Dredger with Submersible Pump is a high-performance solution for various dredging applications. Manufactured by Weifang Jin Meng Dredger Co., Ltd., this equipment is designed for efficiency and durability in challenging environments.
Manufacturer Profile
Weifang Jin Meng Dredger Co., Ltd., located in Qingzhou, Weifang City, specializes in the research, design, production, and sales of river dredging equipment. Our product range includes:
- Cutter suction river dredgers: JMD350 (14"), JMD450 (18"), JMD500 (20"), JMD550 (22"), JMD650 (26")
- Work boats: 220HP, 300HP, 440HP models
- HDPE pipelines: HDPE pipes, rubber hoses, and floaters
Technical Specifications
| Component | Specification |
| Dredging Pump | Discharge pipe diameter: 550mm |
| Head | 80m |
| Max. Working Capacity | 800m³/h |
| Discharge Distance | 3500m |
| Dredging Depth | 25m |
| Diesel Engine | 1306KW Cummins |
| Hydraulic Auxiliary Engine | 336KW Cummins |
| Submersible Pump Generator | 746KW Cummins |
| Emergency Generator | 30KW Cummins |
| Total Power | 2418KW |
| Oil Consumption | 360L/H |
| Hull Dimensions (L×W×D) | 56m × 8.5m × 2.5m |
Key Features
- Modular design for easy transportation and assembly
- Optional electric or diesel engine power systems
- Can pass under low bridges with dismountable control and rest rooms
- Three-pontoon construction with high-intensity bolt connections
- Suitable for various soil conditions including hard soil, sand, sludge, and clay
- Advanced hydraulic system with international components
- SIEMENS PLC operating system (imported from Germany)
Applications
This dredging equipment is suitable for various environments including seas, ports, lakes, and rivers. It can handle multiple soil types including hard sand, sludge, sea sand, river sand, clay, and mud.
Quality Assurance & Services
- Each unit is built by skilled workers and undergoes strict quality inspections
- Comprehensive factory testing before delivery

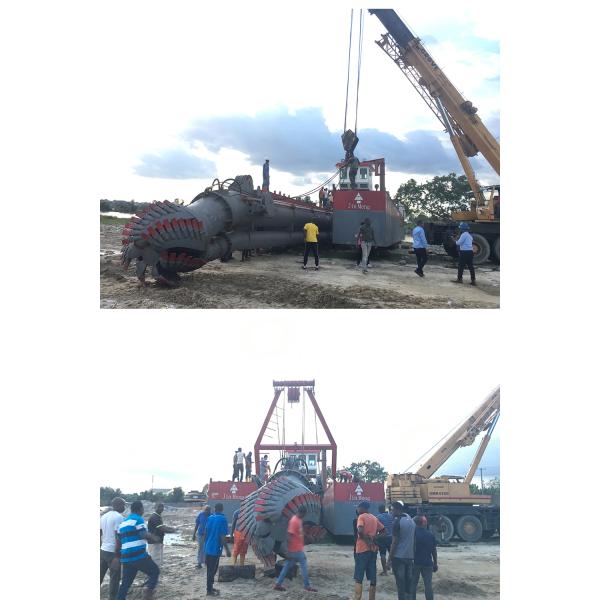

- On-site assembly and staff training by experienced technicians
- After-sales support and technical assistance

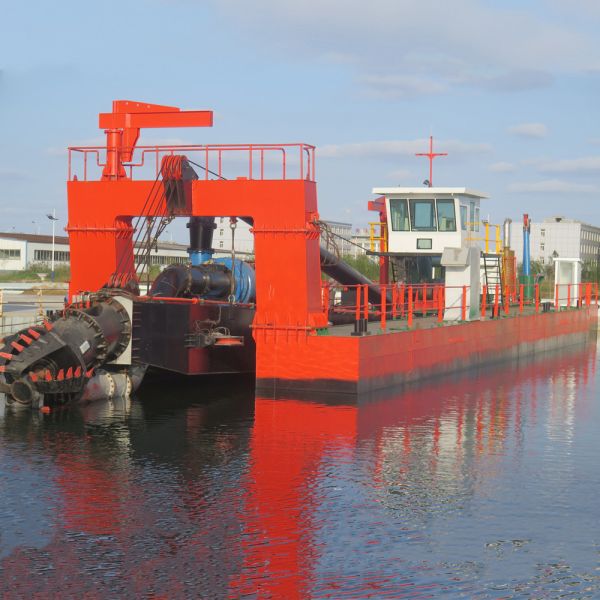

Product Gallery
