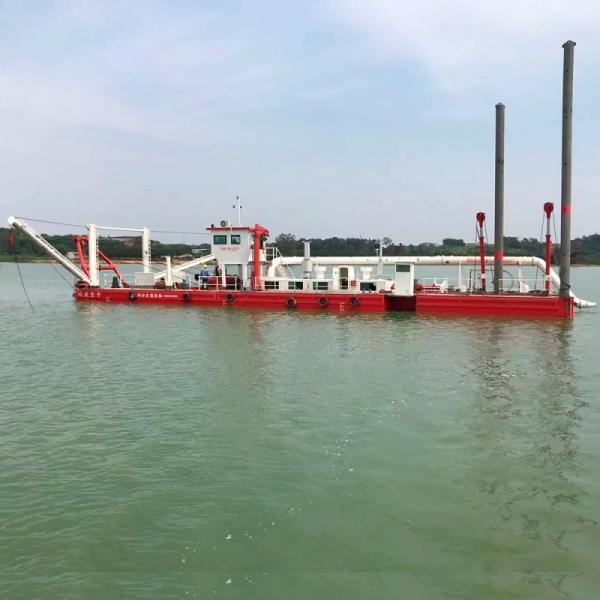

Sand Pumping Dredger Hydraulic River Dredging Machine 1662kw Sand Suction Dredger
Product Specifications
| Attribute | Value |
| Name | Sand Pumping Dredger River Dredging Equipment |
| Type | Hydraulic system cutter suction dredger |
| Engine | Cummins/MITSUBISHI |
| Power | 1662kw |
| Hydraulic valve | Rexroth |
| Water flow | 4000m3 |
| Depth | 15m |
| Discharge distance | 2500m |
| Suction Pipe Diameter | 600 mm |
| Spud Length | 21 meters |
Company Introduction
Weifang Jin Meng Dredger Co., Ltd. is a reliable sand pumping dredger and river dredging equipment manufacturer located in Qingzhou, Weifang City, Shandong Province. Specializing in sand pumping dredger manufacturing since 2000, our products offer excellent price advantages and serve markets across Africa, the Middle East, Southeast Asia, South America, and North America.
Recognized for strong technical expertise, high-quality equipment, and exceptional after-sales service, our products are widely used domestically and exported to countries including India, Iran, Oman, UAE, Argentina, Colombia, Saudi Arabia, Bangladesh, Egypt, Nigeria, Mongolia, and Russia.
Product Description
The sand pumping dredger is designed as a dismantle-type, non-self-propelled dredging machine suitable for inland and coastal operations. It effectively handles soil types including fine sand, clay, silt, and coarse sand.
The hull consists of five pontoons (one main and four side pontoons) made of full steel welding. These components are easily disassembled for transportation by sea, railway, or road.
Technical Specifications
| Component | Specification |
| Dredging Pump | Dia. Discharge pipe: 550mm |
| Head | 65m |
| Max. Working capacity | 900m3/h |
| Discharge distance | 3000m |
| Dredging depth | 14m |
| Diesel Engine | 1306KW (Cummins) |
| Hydraulic Auxiliary engine | 336KW (Cummins) |
| Emergency Generator | 20KW (WEICHAI) |
| Total power | 1662KW |
| Oil Consumption | 250L/H |
| Hull Dimension | LOA*W*D: 42m×7.5m×2.0m |
Key Features
- Detachable structure for easy transportation
- High wear-resistant alloy Cr27 pump components
- Cutter head with 5 blades and 8 teeth per blade (High chromium material)
- Hydraulic motor-driven cutter head with lubrication seal-in units
- Suitable for various soil conditions: hard soil, sand, sludge, clay, etc.
